Features for the
Yamaha EF5500DE
Comes standard with wheels, fold-down/locking handles and battery.

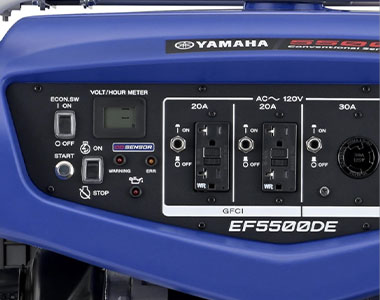

Digital Hour Meter, Digital Voltmeter displays total run time accumulation for servicing and indicates the voltage output.
Lifting eye convenient for hoisting and security.
OHV engine offers efficiency, increased reliability, and quieter operation.

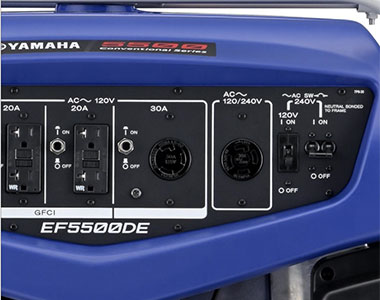

Full power, full time 120/240 dual voltage is ideal for higher voltage requirements.
Ground Fault Circuit Interruption (GFCI) senses a leak to ground to reduce risk of electric shock.
Fuel gauge provides easy monitoring of fuel level.

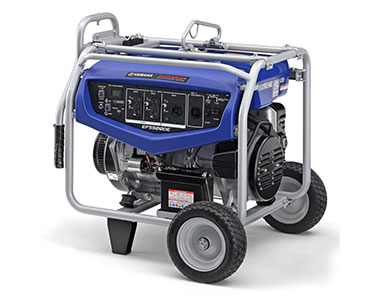

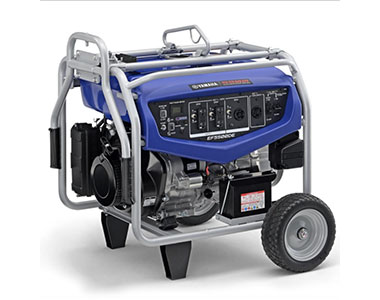

The EF5500DE features a rugged design with full roll cage protection for heavy jobs.
CO Sensor: Engine shuts off if a high level of carbon monoxide is detected.
Reduced price, more wattage: Great value with the same legendary quality and performance.
Eight hours run time at full load: 13% longer run time than previous model.
New and improved OHV MZ360 engine with a hemispherical head: Yamaha legendary durability and reliability.

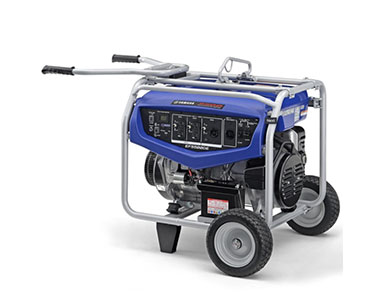

Rugged Wheel kit w/fold-down locking handles: Standard on the EF5500DE.
The battery is standard on the EF5500DE: Wheel kit and Battery are a great value and offer added convenience for transport and starting
Cast iron cylinder lining: Optimal heat dissipation.
Automatic oil warning system shuts off engine before oil level is low: Prevents engine damage, avoids costly repairs, minimizes down time, enhances long term durability.
Transistorized ignition provides lean, efficient spark: Maintenance-free and ensures fast, easy starting, reliable operation.
Auto decompression: Automatically “opens” exhaust valve to reduce compression for easier starting.
EPA Emission Engine Life Rating: The EF5500DE meets the strictest environmental standards - EPA and CARB.
Ground Fault Interrupter (G.F.I.): If the system senses a leak to “ground,” it automatically cuts off power to help prevent injuries.
Fuel gauge: Lets operator monitor how much fuel is left.
Specifications
Model
Model / Model Code: EF5500DE
Size and Weight
Dimensions (length/width/height): 29.1" x 28.4" x 31.5"
Dry Weight: 243.7 lbs.
Engine
Engine Type: OHV
Displacement: 358cc
Fuel Tank
Capacity: 6.9 Gallons
Fuel Type
Unleaded Regular: Cooling System
Cooling Type: Air Cooled
Generator
Type: Brushless
Maximum AC Output: 5500 Watts
Rated AC Output: 4500 Watts
Rated AC Current / Max AC Current: 36.0 amps /44.0 amps @120V | 18.75 amps/22.9 amps @ 240V
Noise Level: 74.1 dBA
Continuous Operation at Rated Load: 9.0 Hrs.
