Features for the

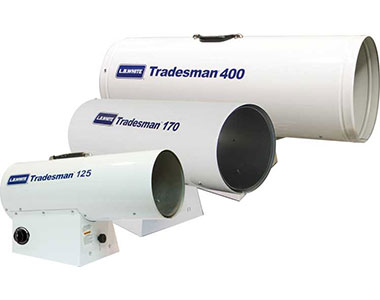

LB White Tradesman 170N-Ultra
Manufactured in Wisconsin from durable components to provide years of dependable performance.
Made with the industry’s heaviest gauge combustion chamber and burner plate. Tri-shield™ coated case protects against abrasion and corrosion.
Easy grip handle & lightweight design make it convenient to move and adjust as the job site changes.
Loaded with reliable safety features. Certified to CSA and ANSI standards.
Variable rate valve allows heater output to be adjusted from low too high for maximum fuel efficiency.
Fuel Flexibility Operate Tradesman Ultra DF from propane or natural gas with the turn of a selector value.
Thermostatic control saves fuel automatically.
Flanged male electrical inlet provides clean connection less prone to getting dirty or wet than pig tail designs.
Reliable, directional heat
Versatile and efficient forced air.
Easy to operate
With dependable 3-trial ignition system, and diagnostic lights on Ultra models.
99% direct-fired fuel efficiency
Boosted by variable output controls and thermostatic controls on 170 and 400 models.
Built to last
With industry’s heaviest gauge combustion chamber and burner plate, and Tri-shield™ coated steel case protects against abrasion and corrosion.
Specifications
Model: Tradesman 170-Ultra
BTU/HR rating: 125,000 / 155,000
Heated air output (CFM): 550
Fuel type: NG
Fuel consumption LP gas min/ max (lb/hr): -
Fuel consumption NG gas min/ max (cu ft/hr): 125 / 155
Inlet gas pressure LP gas: -
Inlet gas pressure NG min/max: 7/13.5 (in W.C.)
Amps (start/continuous): 3.7 / 1.0
Service saver (self-diagnostics): Yes
Unit length (in): 24.0
Unit width (in): 9.5
Unit height (in): 16.0
Shipping weight (lb): 34.0
Case material: Tri-Shield
High temp safety switch: Yes
Air flow safety switch: Yes
Gas pressure regulator: S
Unit mount thermostat: S
Gas hose: O
Certification: U.S & CA
