Features for the
Husqvarna FS 513

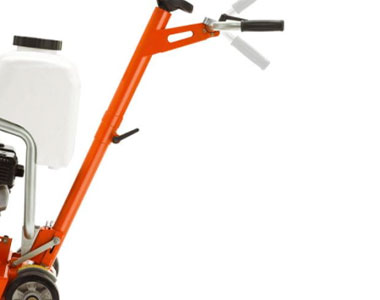

Adjustable handles
Provides a closer and more comfortable position to the cutting side for easier alignment and straighter cuts. Handle can also be folded for transport.
IntelliSnap
The patented IntelliSnap blade spindle has four sealed radial bearings for strength and durability. Allows for a minimum of 500-hour maintenance intervals and a 1000 hour limited warranty.
Low Vibrations
All of our small floor saws have low vibrations. The FS 500- and 400-series has a engine and blade shaft mounting system that gives better cutting performance and also reduce vibrations. Along with the low-vibration handlebar this makes work less tiring for the operator during long shifts
Better power transmission
Specially designed to last longer than conventional belts. Our Poly-V Belt requires less re-tensioning and provides better power transmission.
Self-contained drive system
Differential drive system eliminating drive gear from rear wheels and related wear. It is simple to handle and maintain.
Specifications
Engine
Output power (As rated by the engine/motor manufacturer): 20.8 hp
Engine cooling: Air
Fuel tank volume: 281.7 fl. oz
Transmission
Transmission speed forward: 80 fpm
Cutting equipment
Arbor diameter: 1 in
Blade depth control: Handwheel
Blade diameter, max: 20 in
Cutting depth, max: 7.7 in
Dimensions
Product size length: 66.93 in
Product size height: 47.24 in
Weight: 493 lbs.
