Honda WT40XK3 433 GPM (4")Construction Trash Water Pump

Model: WT40XK3  |  Item Number: 658200
UPC: 786102001786
There are no reviews at this time
Reg. Price: $2,599.00 $2,499.00
CARB Compliant Power Equipment

Only 4 LEFT IN-STOCK!

Features for the Honda WT40XK3

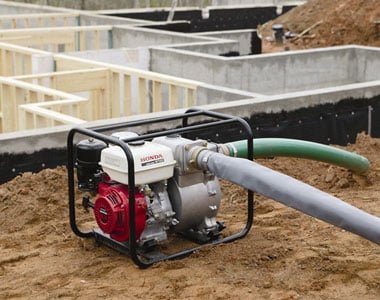

Use the Honda WT40XK2 Construction Trash Water Pump to clear a high volume of trash water on construction sites, allowing solids to pass up to 1 1/16 inches. Protection is provided with the heavy duty protective frame keeping the pump and engine safe from the rugged working conditions. Designed to improve priming and high discharge capacity, the uniquely shaped conical impeller adds durability and resists wear. A service tool is provided for quick removal and installation of the pump case, removal of the priming and drain plugs, and tightening/removal of the hose couplings.

  • Heavy Duty Pump: Construction Trash Pumps are built to withstand high volumes of trash water and are equipped with a metal strainer that passes solids up to 1 1/16".
  • Honda GX340 Engine: Delivering 337cc, this OHV Honda GX340 Engine gives you more power to perform any job quickly.

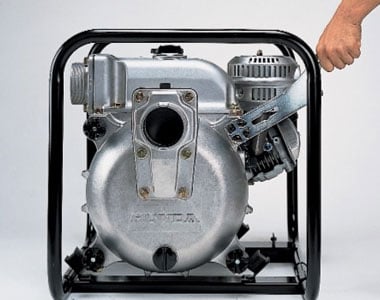

  • Service Tool: A multi-service tool is provided for convenient removal and installation of the pump case, removal of priming and drain plug, and tightening/removal of the hose coupling.
  • Protective Frame: Protect your engine and pump with a heavy duty full frame that is equipped with easy access tie down locations for transportation.
  • Isolated Mounted Engine: Increasing durability the pump is equipped with an isolation mount for the pump and engine. This reduces vibrations to keep the pump from burying itself in soft soil conditions and to reduce wear on the pump components.
  • Quick Clean Out Port: An easy access-clean out port makes clean-out and service convenient and easy.
  • Conical Shaped Impeller: Designed with a unique shape to improve priming and high discharge capacity with added wide vanes to resist wear and maximize durability.
  • Applications: Clear, slimy, muck, and silt water, high solid content, fast seepage, manholes, cofferdams, quarries, and septic tanks.

WARNING:
This product may contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Technical Specs for the Honda WT40XK3*


Warranty
Residential Warranty 3 Years
Commercial Warranty 3 Years

Dimensions
Length (in.) 28.9 inches
Width (in.) 21.1 inches
Height (in.) 22.2 inches
Weight (lbs.) 172 lbs

Engine Specification
Engine Brand Honda GX340
Displacement(cc) 337cc
Cylinder Bore 3.2 inches
Cylinder Stroke 2.5 inches
Compression Ratio 8.0:1
Engine Type 4-Cycle

Pump
Pump Style Heavy-Duty Construction Trash Pump
Pump Type Trash Centrifugal Self-Priming
Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal Silicon Carbide/Silicon Carbide
Priming Time 160 sec at 16.4 ft.
Gallons Per Minute 433 gal./min.
Inlet Diameter 4 inches
Total Head Lift 85 ft.
Suction Head Lift 26 ft.
Maximum Pressure 37 psi
Solids Handling 1 1/16 inches
Strainer Part #78325-YG2-003

* These Technical Specs are provided by the manufacturer at the beginning of the model year. Please be aware that the manufacturer may decide to change these specs at any given time without notice.
