Honda WT20XK4 187 GPM (2") Construction Trash Water Pump

Model: WT20  |  Item Number: 658180
UPC: 786102001724
There are no reviews at this time
Reg. Price: $1,469.95 $1,299.00
CARB Compliant Power Equipment

Only 4 LEFT IN-STOCK!

Features for the Honda WT20

Tough and rugged for those high volume construction sites, the heavy-duty Honda WT20 Construction Trash Water Pump is built to take on more water capacity and handle solids up to 13/16". The cast iron volute and impeller, isolation mounted engine and pump, plus the heavy duty frame are designed to handle the wear and tear of job site machinery. Moving trash water at 187 gallons per minute will certainly speed up any operation.

  • Pump Style: Heavy-duty Construction Trash Pump with metal strainer that allows up to 13/16" solids to pass through.
  • Engine: 4-Stroke OHV Honda 163cc GX160 commercial engine.
  • Gallons Per Minute: 187 gallons per minute (GPM).
  • Inlet Diameter: 2 inches.
  • Service Tool: Multi-tool is provided for removal and installation of the pump case, removal of priming plug and drain plug, and tightening/removal of the hose coupling.
  • Isolation Mounted Engine: The engine and pump sit on vibration absorbing mounts that keep it from "burying" itself in soft ground, and also reduces wear on the parts.
  • Full Frame Protection: Heavy duty frame protects pump from damage.

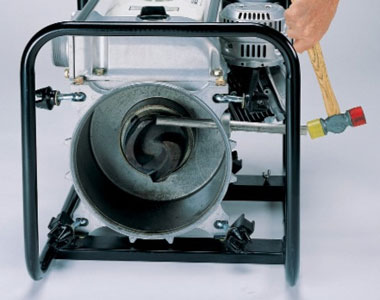

  • Quick Clean Out Port: Designed for quick and easy service and clean-out.
  • Conical Shaped Impeller: Improves priming and discharge capacity.
  • Honda Oil Alert: Shuts off engine when low oil is detected.
  • Pump Applications: Clear, slimy, mucky, silt water, fast seepage, and solids. Also use with manholes, cofferdams, and quarries.

WARNING:
This product may contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Technical Specs for the Honda WT20*

Engine Brand Honda GX160
Displacement(cc) 163cc
Cylinder Bore 2.7"
Cylinder Stroke 1.8"
Compression Ratio 8.5:1

Pump
Pump Style Heavy-Duty Construction Trash Pump
Pump Type Trash Centrifugal Self-priming
Volute Rigid Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal Silicon Carbide/Silicon Carbide
Priming Time 70 sec. at 16.4 ft.
Gallons Per Minute 187 gal./min.
Inlet Diameter 2 inches
Total Head Lift 98 ft.
Suction Head Lift 26 ft.
Maximum Pressure 42 psi
Solids Handling 13/16 inches

Dimensions
Length (in.) 24.4"
Width (in.) 18.1"
Height (in.) 18.3"
Weight (lbs.) 104 pounds

Pump
Strainer Part# 78325-YG0-003

Warranty
Residential Warranty 3 Years
Commercial Warranty 3 Years

Engine Specification
Engine Type 4-Cycle

* These Technical Specs are provided by the manufacturer at the beginning of the model year. Please be aware that the manufacturer may decide to change these specs at any given time without notice.
