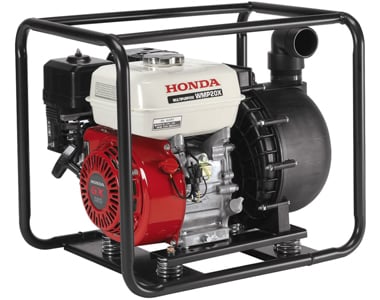

Honda WMP20X1 220 GPM (2") Multi-Purpose Water Pump

Model: WMP20X1  |  Item Number: 658050
UPC: 0786102002523
There are no reviews at this time
Reg. Price: $599.00 $569.00


Only 1 LEFT IN-STOCK!

Features for the Honda WMP20X1

Remove a wide range of industrial and agricultural chemicals with this Honda WMP20X1 Multi-purpose Water Pump. An easy starting Honda GX160 engine that features low oil shutdown gives you the power to get your job done fast. Vibration absorbing mounts under the engine keep the pump from walking away or burying itself into soft soil. Also, the EPDM Seals offer protection to your pump from a wide range of chemicals.

  • Honda OHV Engine: Built with an easy starting OHV Honda GX160 engine to give you all the power you need. Also equipped with low oil shutdown, which protects the engine by shutting it off when low oil is indicated.
  • Protective Frame: Protect your engine and pump with a heavy duty full frame that is also equipped with easy access tie down locations for transportation.
  • Mounted Engine and Pump: Increasing durability the pump is equipped with an isolation mount for the pump and the engine. This reduces vibrations to keep the pump from burying itself in soft soil conditions and to reduce wear on the pump components.
  • EPDM Seals: Featuring rubber designed seals that offer resistance against a wide range of chemicals to protect your pump from damage.
  • Applications: Clear, slimy, mucky, silt water, fast seepage, manholes, basement drainage and industrial and Agriculture chemicals such as, aluminum sulfate, magnesium chloride, and sodium chloride.

WARNING:
This product may contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Technical Specs for the Honda WMP20X1*


Warranty
Residential Warranty 3 Years
Commercial Warranty 3 Years

Dimensions
Length (in.) 20.5 inches
Width (in.) 15.7 inches
Height (in.) 17.7 inches
Weight (lbs.) 56 lbs.

Engine Specification
Engine Brand Honda GX160
Displacement(cc) 163cc
Cylinder Bore 2.7 inches
Cylinder Stroke 1.8 inches
Compression Ratio 8.5:1
Engine Type 4-Cycle

Pump
Pump Type Multi-purpose Centrifugal Self Priming
Pump Style Multi-purpose
Volute Rigid Mounted Fiberglass reinforced polyester
Impeller Fiberglass reinforced polyester
Mechanical Seal Carbon/Ceramic
Priming Time 65 sec at 16.4 ft.
Gallons Per Minute 220 gal./min.
Inlet Diameter 2 inches
Total Head Lift 105 ft.
Suction Head Lift 26 ft.
Maximum Pressure 45 psi
Solids Handling N/A
Strainer Part #78325-YE0-003

* These Technical Specs are provided by the manufacturer at the beginning of the model year. Please be aware that the manufacturer may decide to change these specs at any given time without notice.
