Features for the

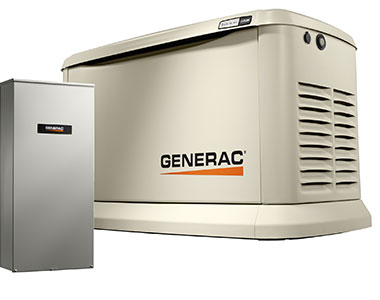

Generac 7172 - Standby Generator
True Power™ Technology
It delivers best-in-class power quality with less than 5 percent total harmonic distortion for clean, smooth operation of sensitive electronics and appliances.
Generac's G-Force™ Engine
It’s a purpose-built, pressure-lubricated engine capable of handling the rigors of generator use, resulting in power that’s more reliable and requires less routine maintenance than any competitive engine.
Quiet-Test™ Self-Test Mode
Self-Test Mode runs at a lower RPM for a five- or twelve-minute test, making generators significantly quieter than other brands while consuming less fuel.
Tough, Durable All-Aluminum Enclosure
The RhinoCoat™ powder-coated finish helps make corrosion-resistant aluminum perfect for all weather conditions.
Mobile Link™ Wi-Fi Connectivity FREE with every Guardian Series Home Standby Generator
Allows you to monitor the status of your generator from anywhere in the world using a smartphone, tablet, or PC. Easily access information, such as the current operating status and maintenance alerts. Connect your account to your authorized service dealer for fast, friendly, and proactive service. With Mobile Link, you are taken care of before the next power outage.
100 Amp 16-circuit Transfer Switch
Powers 16 circuits of your home with the 100-amp, NEMA 3R (indoor or outdoor rated) transfer switch with aluminum enclosure.
Alexa Smart Home Compatible
Smart, User-Friendly Controls
Specifications
Model
Rated max continuous power capacity (LP): 11,000 Watts
Rated mac continuous power capacity (NG): 9,000 Watts
Rated mac continuous load current – 240 volts (LP/NG): 41.7/37.5
Main line circuit breaker: 45 amp
Battery requirement (not included): 12 volts, Group 26R 540 CCA minimum or group 35AGM 650 CCA min
Unit weight (lb. / kg.): 338/2153
Dimensions (LxWxH) in /cm: 48x25x29/121.9x63.5x73.7
Sound output dB(A) at 23 ft (7m) with generator operating at normal load: 61
Sound output in dB(A) at 23 ft (7m) with generator in Quiet-Test low-speed exercise mode: 57
Engine
Engine type: Generac G-Force 400 Series
Number of cylinders: 1
Displacement: 460 cc
Cylinder block: Aluminum w/ cast iron sleeve
Valve arrangement: Overhead valve
Ignition system: Solid
Governor system: Electronic
Compression ratio: 9.5:1
Starter: 12 VDC
Oil capacity including filter: Approx. 1.1 qtr./1.0 L
Operating rpm: 3,600
WARNING:
This product may contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
