Features for the

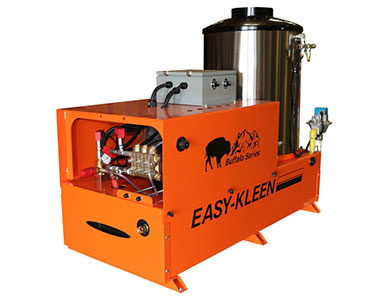

Easy-Kleen EZP5005-3-208-A Pressure Washer
20-HP Techtop Electric-Powered Pressure Washer with Propane-Fueled Water Heater
Requires 208 volt, 3-phase power.
Quick Kleen 510,000 BTU Burner System (Must Be Vented Properly If Used Indoors)
Slide-out tray makes maintenance simple; jets have 6 oxygen orifice inlets to ensure maximum burn & minimize CO.
Adjustable thermostat for efficiency, dependability & serviceability.
NEMA 4 Water-Tight Control Panel & Quick-Adjust Air Flow Vents
Hinged cover provides easy service access; vents maximize burner efficiency by easily adjusting the air flow.
Tip-Ahead Shroud with Integrated Belt Guard
Loosen the T-Nuts on both sides of the unit & pull the shroud forward for fast motor & pump access.
Belt guard is integrated into the design of the shroud for maximum serviceability & safety.
20-HP Totally Enclosed, Fan Cooled, Full Frame 1750 RPM Electric Motor
High efficiency motor equipped with 1.25 service factor to meet demand.
General Pump Triplex Plunger Pump with Auto-Stop
Produces up to 5 GPM at 5000 PSI; runs cooler so it lasts longer.
Belt Drive with Torsion Bar Spring-Loaded Belt Tensioner
Large diameter pulleys are used to reduce belt wear; easily accessed under the shroud.
Rugged 11-Gauge & 1/4" Steel, Fully Welded Steel Frame
Powder-coated finish helps protect against rust & corrosion.
Also Included
Gun & wand assembly, 50 feet of high-pressure hose, high pressure chemical injection, 5 nozzles & poly float tanks.
Specifications
Motor
Motor Voltage: 208-Volt Three-Phase
Engine
HP: 20 HP
Pump
Pump Brand: General
Pump Type: Triplex Plunger
Adjustable Pressure: Yes
Chemical Injection: Down-Stream
Overview
Weight: 1747 Pounds
Product Length: 77 Inches
Product Width: 38 Inches
Product Height: 66 Inches
