Features for the

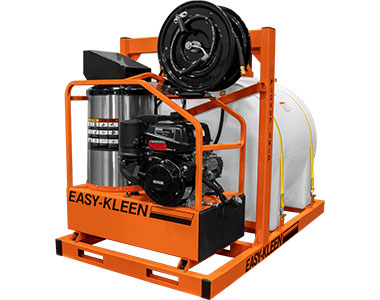

Easy-Kleen EZO3504G-K-PSR Pressure Washer
Commercial Easy-Kleen Portable Truck Mount Skid Unit
Designed to fit perfectly into 6’6” box of a pickup truck.
Totally self-contained system allows for 100% portable cleaning.
Built-in 10-gallon winterization system for year-round cleaning and transportation possible.
Slides Right into Standard Bed Pickup Trucks
Be sure to check weight capacity of truck before filling tank!
Base dimensions 76" long x 42" wide x 57" high.
Total: 2955 pounds (900 lbs unit+1876 lbs water+179 lbs fuel).
225 Gallon Top-Fill Poly Water Tank
Ideal for daily construction, oil field applications, and farm use.
Provides heat and speed cleaning for the toughest and dirtiest jobs.
10 gal. anti-freeze tank w/ recirculation package for sub-zero temps.
Reliable 14 HP Kohler Engine with Electric Start
Runs strong, starts easily (battery not included).
Professional-grade power and performance.
Quad-Clean™ all-season four-stage cyclonic air filter.
Large fuel tank means more time working, less time filling.
General Gear Drive Triplex Plunger Pump
Powerful 4 GPM output for optimum performance.
Thermo pump protector prevents pump overheating.
Durable oil bath crankcase, stainless valves & brass manifolds.
Quality North American Made Wayne 12-Volt Oil-Fired Burners
Adjustable thermostat w/ on & off switch for efficiency.
Achieves a 145°F to 150°F rise in temperature over ambient.
Schedule 80 Heating Coil with Stainless Steel Shell
Structurally braced to reduce vibration and pipe wear.
Ceramic blanket for total efficiency; saves heat-up time & fuel.
Saves on heat-up time & fuel every time you use it, 400,000 BTU.
Powder Coated Heavy-Duty Lifetime Warranty Frame
Heavy-duty 2 x 4 tube fully welded steel used.
Rugged steel roll-cage protects burner, engine, and pump.
Lifting bar & forklift holes allow easy loading & unloading.
Frame mounted hose reel keeps hose kink-free & easy to transport.
Professional Grade 36” Spray Gun
5 versatile quick connect nozzles: 0°, 15°, 25°, 40° & soap.
100 feet of high-pressure hose let you work in a wide area.
Downstream soap injection allows for a wider choice of chemicals.
Engine Brand: Kohler
Starter: 12-Volt /w Recoil
HP: 14 HP
Pump Brand: General
Pump Type: Triplex Plunger
Adjustable Pressure: Yes
Chemical Injection: Down-Stream
Burner Fuel: Diesel
Burner Fuel Tank Size: 10 Gallons
Water Tank Size: 225 Gallons
Weight: 930 Pounds
Product Length: 78 Inches
Product Width: 42 Inches
Product Height: 64 Inches
