Features for the

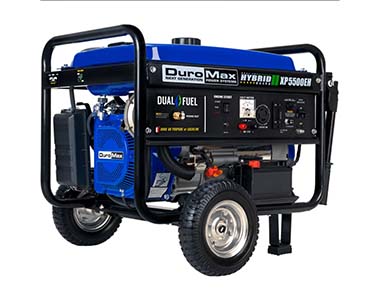

DuroMax XP5500EH Generator
Plenty of Power – With 5,500 starting watts and 4,500 running watts, this unit can handle heavy loads, from lights and a refrigerator to a home air conditioner and high amperage power tools.

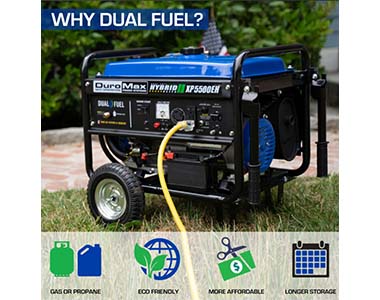

Dual Fuel Technology – This generator runs on gasoline or propane, giving you the freedom and flexibility of fuel choice. Why Dual Fuel? Learn more about Dual Fuel technology
Powerful Engine – The DuroMax 224cc OHV engine is a workhorse that provides plenty of power to handle multiple jobs, from powering high voltage appliances to heavy duty power tools.
MX2 Technology - Get the maximum power from each of the 120-Volt receptacles. Choose between operating the generator at both 120V and 240V simultaneously, or at 120V only with full power. Ideal for usage with RVs.
Low Oil Shutoff – Protects your investment by automatically shutting the generator off when it senses that the oil is low.

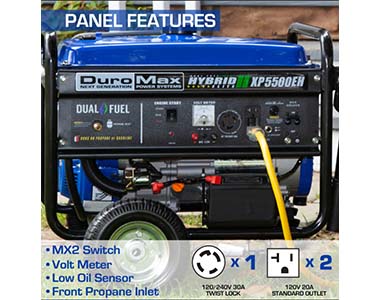

Fully Featured Power Panel – The power panel includes a wide selection of outlets for maximum compatibility in your applications including: 2 120V household GFCI outlets, and 1 120/240V 30A twist lock outlet. The panel also includes a voltmeter and 12V DC charging posts for charging external batteries.
Complies with Emissions Standards – All DuroMax generators are both approved by the EPA (Environmental Protection Agency) and CARB (California Air Resources Board) and follow strict guidelines to ensure our generators are as environmentally friendly as possible.
Spark Plug Wrench

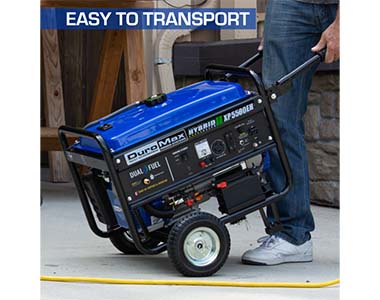

Wheel & Handle Kit
DC Charging Cables
Peak Watts: 5,500
Running Watts: 4,500
Peak Amps @ 120V: 45.83
Running Amps @ 120V: 37.50
Peak Amps @ 240V: 22.92
Running Amps @ 240V: 18.75
Peak Watts: 5,225
Running Watts: 4,275
Peak Amps @ 120V: 43.54
Running Amps @ 120V: 35.63
Peak Amps @ 240V: 21.77
Running Amps @ 240V: 17.81
Amperage: 37.50A / 18.75A
Voltage: 120V / 240VAC & 12VDC
Frequency: 60 Hz
Engine Size: 224 cc
Engine Type: 4-Cycle Air-Cooled Spark-Ignition
Engine Speed: 3600 rpm
Fuel Type: Gasoline / Propane
Fuel Tank Capacity (Gasoline): 4 gal.
Suggested Tank Size (Propane): 20 lbs.
Runtime (Gasoline) at 50% Load: 9 hrs.
Runtime (Propane) at 50% Load: 8 hrs.
Start Type: Electric / Recoil
Volume Level: 69 dB
EPA Certified: Yes
CARB Certified: Yes

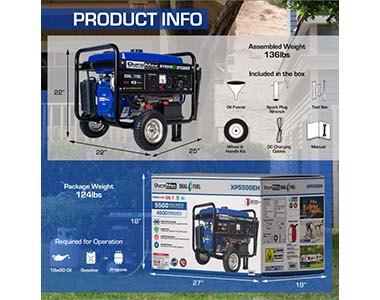

Product Dimensions: 25" L x 22" W x 22" H
Product Weight: 124 lbs.
