Features for the
DR Power WR35028BMN Log Splitter

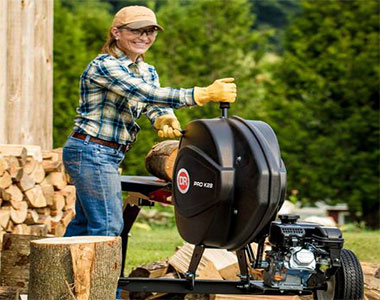

55-lb. Flywheel
The K28's 110-lb. cast-iron flywheel produces twice the momentum of our K22 Model's flywheel -- for splitting longer, larger, tougher logs.
Auto Retraction
With ordinary splitters you must engage the return lever until the ram is back to its starting position. The Rapid-fire retracts automatically, leaving your hands free to load the next piece of wood for splitting.
Twice-Hardened Steel Pinion Gear
The Pinion Gear transfers energy from the Flywheel to the Ram. Industrial steel is case-hardened twice during manufacturing for bomb-proof durability
Road-Towable
Department of Transportation-Approved 16" diameter by 4.8" wide wheels with tapered roller bearings allow you to transport your K28 on roads at up to 45 mph (note: towing with a ball hitch requires purchase of our optional Ball Hitch Kit).
Overhead Valve Briggs & Stratton Engine
The Briggs and Stratton 750 CR Series engine produces 7.5 ft.-lbs. of torque — plenty of power for all home -- or even commercial use!

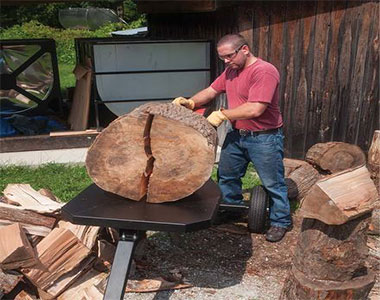

Heavy-Duty Steel Worktable
The Rapid Fire’s steel worktable means no more stooping down to pick up split logs. After a log is split, the pieces remain at a comfortable working height, so there's no need to bend down to retrieve them for a second split.
Specifications
DIMENSIONS
Height: 48.3"
Shipping Weight: 523 lbs.
Wedge Height: 6.2"
Wedge Width: 3/4"
Weight: 395 lbs.
Width: 46.8"
Overall Length: 101"
Shipping Dimensions: 49"L x 67"W x 49.5"H
Working Height: 27"
ENGINE
Cooling Methods: Air
Displacement: 163cc
Engine Type: OHV
Ft Lbs. Torque: 7.5
Lubrication: Splash
Make: Briggs & Stratton
Model: 750 CR Series
Number Of Cylinders: 1
Oil Capacity: 20 oz
RPM Speeds: 3600
Starting Type: Manual
Choke/Primer: Choke
GENERAL
Assembly: Yes
WHEELS/TIRES
Tire Size: 16" x 4.8"
Wheel: DOT Wheel with Taper Roller Bearings
SPLITTING
Average Cycle Time: 3 seconds
Max Log Diameter: 30"
Max Log Length: 24"
Out splits: Out splits a 28-ton hydraulic
