Features for the
DR Power WL33006DMN Lawn Vacuum
POWERFUL VACUUM FORCE
Unparalleled among residential walk-behind vacuums. All the power you need to collect wet, matted leaves, pinecones, nuts, and other debris.
ALL STEEL IMPELLER
Serrated fins aggressively mulch and reduce collected material 10:1!
POWERFUL DR ENGINE
High-quality 6.6 HP DR OHV engine (223cc) produces 9.59 ft.-lbs. gross torque (at 2500 rpm per SAE J1940).

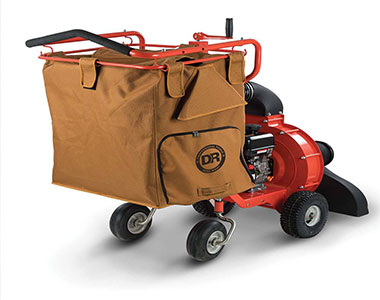

EXTRA LARGE COLLECTION BAG
Handles up to 6 cubic feet of debris, allowing for less frequent dumping than competitive models. Uses easily accessible side zipper bags for fast and effortless emptying. Bag is quickly detachable (without use of tools or hook and loop fasteners) for discharging contents away from the machine.
POWER ASSISTED DISCHARGE
By opening one or both side flaps, then starting up the engine, the impeller will provide a blast of air that will blow contents out of the bag quickly and efficiently.
ADJUSTABLE INTAKE HEIGHT
From the operator’s position the collection snout can easily be adjusted from 1” off the ground (for maximum vacuum power) to a maximum of 5” (for less suction, or to create clearance for uneven terrain).
PNEUMATIC TIRES
For easy rolling, even on challenging terrain. Front wheels are 10 x 4”, rear wheels are 8” x 3”. Rear wheels swivel for responsive steering.
OPTIONAL VACUUM HOSE
For hard-to-reach areas. The optional vacuum hose gives you seven feet of extra reach so you can clean out areas you can’t get to with the front collector snout—garden beds, along foundations, window wells, etc.
Specifications
WHEELS/TIRES
Front Tire Size: 10" x 3.5"
Number of Tires: 4
Rear Tire Size: 8" x 3"
Tire Size: 10" x 3.5"
Tread: Turf
DIMENSIONS
Handlebar Height: Adjustable - 41", 42.5", 44"
Height: 47"
Length: 58"
Shipping Weight: 200 lbs.
Weight: 150 lbs.
Width: 28"
Shipping Dimensions: 45" L x 37" W x 47.5" H
GENERAL
CARB Certified: Yes
Assembly: Yes
ENGINE
Air Filter: Dual Element
Cooling Methods: Air Cooled
Displacement: 223cc
Engine Type: OVH
Ft Lbs. Torque: 11.1
Horsepower: 6.6
Lubrication: Splash
Make: DR
Number Of Cylinders: 1
Oil Capacity: 16 Oz
Oil Type: SAE 30W HD
Pre-Cleaner: Yes
Starting Type: Manual
Choke/Primer: Choke
FUEL SYSTEM
Fuel Capacity: 3.6L
Fuel Shutoff Value: Yes
HAULING
Hauling Capacity: 6 Cubic Feet
Weight Capacity: 60 lbs.
