Features for the
DR Power WH25034DMN Log Splitter

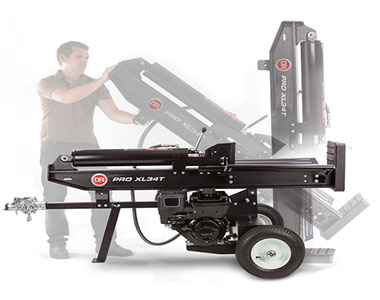

Easy Conversion
Switching from horizontal to vertical mode (or vice versa) takes only a few seconds. Just slip out a pin, rotate the unit, and re-insert pin to lock it into position. Let’s you split those really big rounds without lifting the log onto the beam.
DR Engine
Powerful, easy starting engines make our log splitters the natural choice for any task and are designed for long life.
Rugged Hydraulics
Hydraulic pump generates 3500 psi in the cylinder (5" bore). Steel piston compression seals provide consistent power...year after year.
Easy Towing5
A 2" ball hitch comes standard (with safety chains) allowing for road towing at speeds up to 45 mph. Jack stand folds up for transport.
4-Way Wedge
The optional 4-way wedge easily attaches to the standard vertical wedge, allowing you to get 4 logs out of one split.
Cast Iron Beam
Provides rock solid stability in either horizontal or vertical mode without any of the rocking you get with lightweight splitters.
Specifications
DIMENSIONS
Height: 35.4 in
Length: 83.6 in
Wedge Height: 7.94 in
Wedge Width: 1-3"
Weight: 549 lbs.
Width: 40.6 in
ENGINE
Displacement: 200cc
Ft Lbs. Torque: 15 ft-lbs.
Horsepower: 9.1 HP
Make: DR
Number Of Cylinders: 1
FUEL SYSTEM
Fuel Capacity: 1.6 gals
Fuel Type: Gas
GENERAL
Assembly: Some assembly required
HYDRAULICS
Cylinder Size: 5" bore, 23.65" stroke
Hydraulic Component Rating: 3500 psi
Pump: 2 Stage, 13.0 gpm
Reservoir: 5 gal
WHEELS/TIRES
Number of Tires: 2
Tire Size: 16"
TOWING
Hitch Type: 2" Ball
Max Highway Speed: 45 mph
Towable: Yes
SPLITTING
Average Cycle Time: 16 secs
Max Log Diameter: 30 in
Max Log Length : 25 in
Splitting Force: 34 tons
