Features for the
DR Power VT15010TBN Trailer

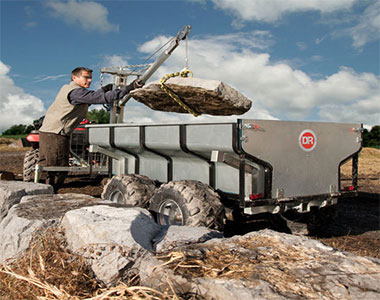

Swinging Boom Lift
The boom will lift objects weighing up to 440 lbs. from either side of the trailer. It's like having two strong men helping you lift heavy weights, and it's a lot safer. Use it for rocks, logs, pallets, bald trees and more.
The angle of the boom can easily be adjusted, without tools, allowing you to lift and load objects without constantly repositioning the trailer.
Side Stabilizers
Can be lowered and secured, without tools, to stabilize the trailer when loading or unloading. Keep your trailer steady when using the boom lift from either side.

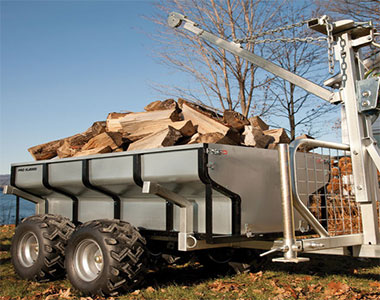

Stake Bed Configuration
By removing two pins, one person can slide the steel dump bed off the trailer frame. Then, four extenders (included) can be added into frame pockets, and the conversion is complete. It takes less than five minutes!
The stake bed lets you handle long loads like log lengths, lumber, dock sections and more. The extenders are chained to the frame to prevent loss when they're not in use.

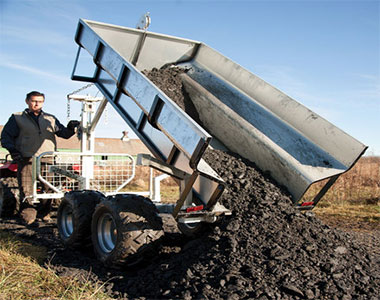

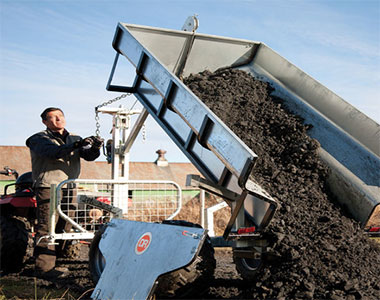

Winch-assisted Dumping
Many so-called "dump" trailers have such a shallow tilt to their dump action that you have to shovel them out or unload them by hand.
The Versa-Trailer has a steep, 35-degree dump angle that allows you to empty your full load without any manual labor. Like the lifting, the dumping action is winch-assisted, with the cable attaching to a hitch point on the trailer's floor.
Tandem Wheels
The Versa-Trailer's tandem wheels pivot on the axle so that, working together, they create a kind of independent suspension. This allows the trailer to adapt to all sorts of rugged terrain and "walk" right over all kinds of obstacles.
Removable End Panels
The end panels come off in seconds, without tools, for carrying log loads or for dumping.
Pivoting Jack Stand
Raises or lowers the tongue, for hitching to your towing vehicle without straining your back. The hitch itself also pivots, allowing your towing vehicle and the trailer to ride independently over rough terrain without putting torque on the tongue or hitch.
Pivoting Hitch
The pivoting hitch allows your towing vehicle and the trailer to ride independently over rough terrain without putting torque on the tongue or hitch.
Steel Guards
Tire valves are protected from rocks, roots, and stumps, so you can take the trailer into woodlots, on trails, or through meadows without worry.
DIMENSIONS
Height: 80" (w/ boom)
Length: 133"
Shipping Weight: 760 lbs.
Weight: 703 lbs.
Width: 51"
Shipping Dimensions: 133.6"L x 50.7"W x 71.9"H
GENERAL
Assembly: Yes
Type: Versa-Trailer
HAULING
Bed Dimensions: 79" l x 42" w x 24" h
Bed Volume: 31.25 cu ft
Dump Angle: 35 degrees
Dumping Capacity: 650 lbs.
Hauling Capacity: 2000 lbs.
LOADING
Boom Angle Positions: 23 degrees left or right; 45 degrees left or right
Bucket Rotation: 45 degrees left or right
Cable Size: 7/32" x 25'
Crane Lifting Capacity: 440 lbs.
Hook Size: 5/16"; 1" opening
Loading Height: 5/16"
Loading Reach: 1" opening
WHEELS/TIRES
Number of Tires: 4
Tire Size: 22" x 11"
TOWING
Hitch Type: ball hitch
Tongue Weight: 120 lbs.
Tow Receiver Size: 2"
Towable: Yes
