Features for the

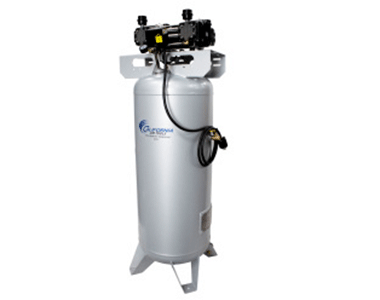

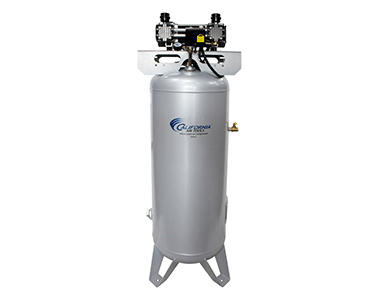

California Air Tools 60065C Air Compressor
6.5 HP (Rated/Running)
60 ASME Gallon Steel Tank
20.0 CFM @ 40 PSI
17.0 CFM @ 90 PSI (480 liters per minute)
230V 3-Phase 60hz 15Amp
The CALIFORNIA AIR TOOLS 60065C Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 6.5 Hp air compressors in the industry having only 85 decibels of sound compared to competitive models.
The Powerful 6.5 Hp 3-Phase 230 volt motor-pump operates at 3400 RPM creating up to 20 CFM air flow and is designed to increase duty cycle and allow for longer continuous run operations.
The Oil-Free Quad Piston Pump System is engineered for high performance and durability.
The large 60 Gallon ASME Steel Air Tank is just the right size to support a large facility including commercial business, manufacturing operations, autobody shops and other general pneumatics that require air volumes of up to 20 cfm
Designed for the person looking for Power, Oil-Free Air Flow and at Least 30% Less Noise!
Features:
Ultra Quiet - 85 decibels
Oil-Free Pump – Cleaner air for better tool operation.
Less maintenance and Costs.
One tank pressure gauge
1/2" NPT female port
No output pressure regulator, quick connector or air hose included
Condor Pressure Switch
Thermal Overload Protector
120 PSI Maximum Pressure
230 Volt / 60 Hertz / 3-Phase (range 215v to 240v)
Amp Draw - 15 Amps
20 Amp Breaker suggested
Time to fill tank from empty to full - 191 Seconds
Recovery time from 92 PSI to 120 PSI - 35 Seconds
Less heat which dissipates more efficiently
60 Gallon ASME Steel 155 PSI Air Tank
L (32.5") x W (28") x H (60.5")
260 lbs
Manual Drain Valve with Strainer cleanout
Comes complete with (4) Air Filters
Plug Type: Nema L15-20P (connect to L15-20R receptacle)
Cord Length: 7ft
70/30 Duty Cycle Rating*
Commercial Use: Refer to State & City Codes
1 Year Limited Warranty
Assembled in Mexico & USA with Global Compoents
