Features for the

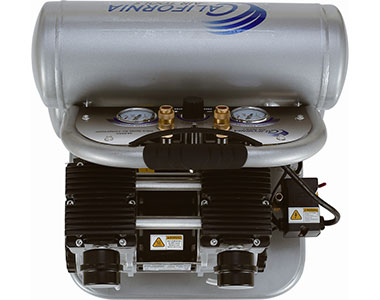

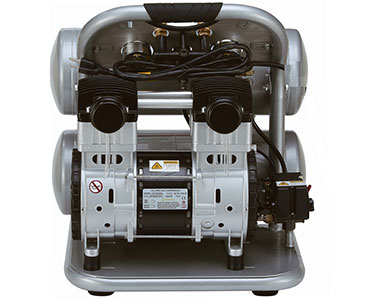

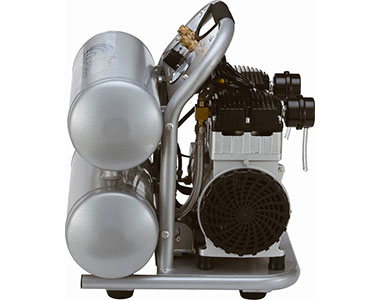

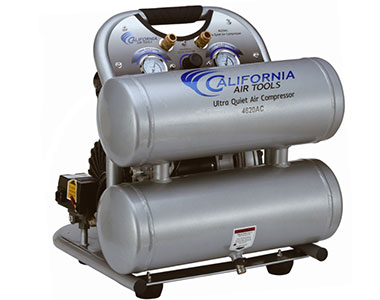

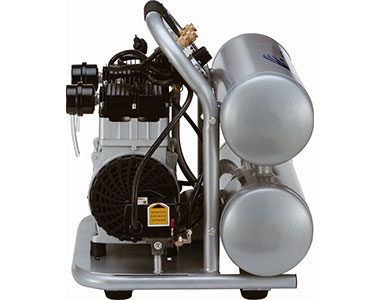

California Air Tools 4620AC Air Compressor
The CALIFORNIA AIR TOOLS 4620AC Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound.
The Powerful 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear.
The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-4620AC Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The Easy Start Valve feature allows for an easier start up using fewer starting amps.
The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely.
This no-load start up requires less amps for an easier start up in cold temperatures.
The large 4.6 Gallon Aluminum Air Tank is only 64 pounds making it very easy to move around the jobsite.
Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
Two pressure control gauges
Two - 1/4″ Industrial female quick connectors
Easy Start Valve - For Less Starting Amperage
Thermal Overload Protector
Less heat which dissipates more efficiently
Portable and Easy to move around.
Comes with Two Air Filters
UL Certified
Oil-Free Pump
Cleaner air for better tool operation.
Less maintenance and Costs.
Specifications
Horsepower: 2.0 HP (Rated/Running)
Tank Size: 4.6 Gallon
Tank Material: Aluminum Tank
Cubic Feet Per Minute: 6.40 CFM @ 40 PSI
Cubic Feet Per Minute: 5.30 CFM @ 90 PSI
Sound (Ultra-Quiet): 70 decibels
Maximum Pressure: 125 PSI
Volts: 110v
Hertz: 60 hz
Low Amp Draw: 14 Amps
Time to fill tank from empty to full: 60 Seconds
Recovery time from 95 PSI to 125 PSI: 20 Seconds
Duty Cycle: 70/30
Maximum Run Time: 30-60 min. (Depending PSI & CFM)
Dimensions: L (19.1") x W/D (16.7") x H (19.7")
Weight: 64 lbs.
