Features for the

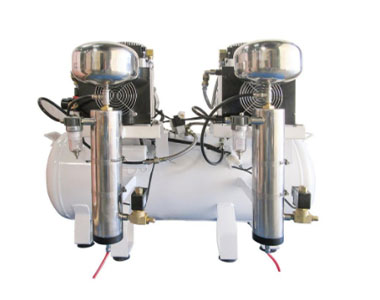

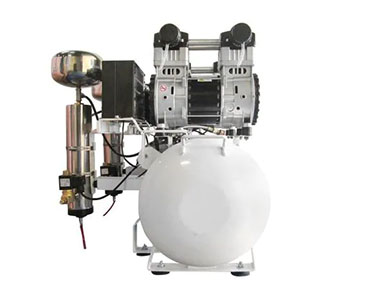

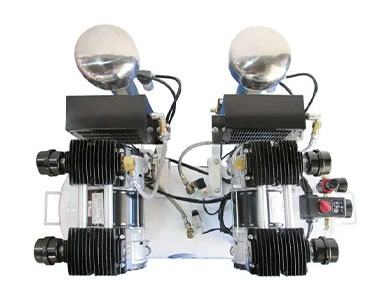

California Air Tools 20040DCAD Air Compressor
Designed for many applications including Dental Offices and Milling Machines.
Powerful 4-HP SP-Series 220-Volt 1-Phase Motor
Low 1680 RPM creates less noise & wear.
75 dBA is ideal for indoor use where noise is an issue.
Oil-Free Dual Piston Pump System
12.8 CFM @ 40 PSI; 10.6 CFM @ 90 PSI; 125 PSI maximum.
Has a 3000+ hour life cycle before wear; comparable units are 1500 hours or less.
Aftercooler Condenser
Heat exchanger cools the discharge air; condensation is pushed to dryer.
Air Dryer with Activated Alumina Desiccant
Activated Alumina has a 4000-hour service life; protects tools & machinery.
20 Gallon Steel Air Tank with Automatic Drain Timer
EZ1 auto-drain selects frequency & duration of tank drainage.
Designed For Increased Duty Cycles & Run Times
Time to fill tank from empty to full - 150 Seconds.
Recovery time from 95 PSI to 125 PSI - 40 Seconds.
Top Mounted Controls & Condor Pressure Switch
Dual gauges so you can check tank & tool pressure at a glance.
1/4" air outlet with quick connector for fast tool changes.
Thermal Overload Protector
14 Amp low amp draw works on NEMA 6-15P outlets.
Specifications
Engine
Horsepower: 4
Motor
Voltage: 230 Volt AC
Phase: 1-Phase
dBA: 75
Magnetic Starter: No
Amp Draw: 14
Recommended Breaker: Consult Certified Electrician
Pump
CFM: 10.6
CFM Rated at: 90 PSI
Pump Material: Aluminum
Max PSI: 125 PSI
Pump Type: Single-Stage
After Cooler: Yes
Pump Drive: Direct Drive
Oil Type: Oil Free
Tank
Tank Size: 20 Gallons
Tank Outlet: 1/4 Inch
Electronic Drain Valve: Yes
Tank Orientation
Horizontal: Filter
Regulator: Yes
Accessories
Pressure Gauge: Yes
Air Dryer: Yes
Air Filter: Yes
Overview
Weight: 175 Pounds
Product Length: 39 Inches
Product Width: 25 Inches
Product Height: 28 Inches
Power Type: Electric
UPC: 743369720072
