Features for the
California Air Tools 20040C Air Compressor

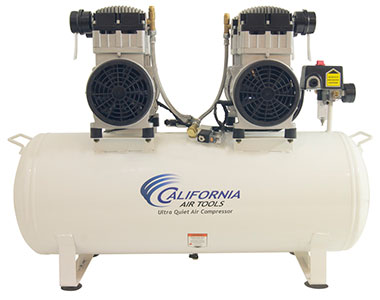

The CALIFORNIA AIR TOOLS 20040C Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 75 decibels of sound.
The Powerful "New" (2) 2.0 HP (SP-9421-22060) motors operates at only 1680 RPM creating less noise and less wear.
The "New" SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-20040C Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The large 20 Gallon Steel Air Tank is just the right size for shop or garage.
Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise!
Condor Pressure Switch
Thermal Overload Protector
Less heat which dissipates more efficiently
Easy to move around.
Commercial Use
Assembled in USA with Global Components
Oil-Free Pump
Cleaner air for better tool operation.
Less maintenance and Costs.
One
1/4″ Industrial female quick connector
Two
Pressure control gauges
Four
Air Filters
Specifications
Sound (Ultra Quiet): 75 decibels
Maximum Pressure: 125 PSI
Volts: 220 Volt
Hertz: 60 Hertz
Phase Type: Single Phase (No 208 Volts)
Low Amp Draw: 14 Amps
Time to fill tank from empty to full: 150 Seconds
Recovery time from 95 PSI to 125 PSI: 40 Seconds
Duty Cycle: 70/30
Maximum Run Time: 30-60 min. (Depending PSI & CFM)
Tank Size: 20 Gal.
Tank Material: Steel Air Tank
Dimensions: L (39") x W (15") x H (28")
Weight: 140 lbs..
Plug Type: Nema 6-15P
Horsepower: 4.0HP (Rated/Running)
Air Flow Per Minute: 12.80 CFM @ 40 PSI
Air Flow Per Minute: 10.60 CFM @ 90 PSI
