Features for the

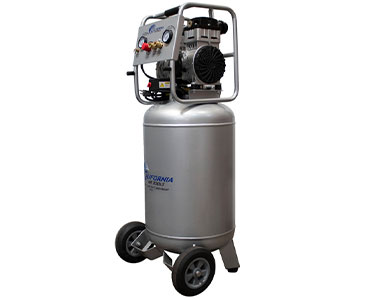

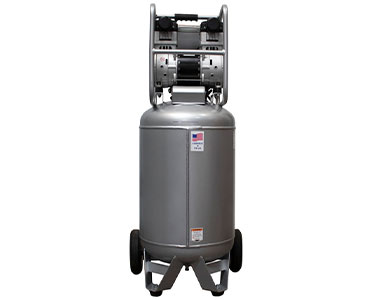

California Air Tools 20020 Air Compressor
The CALIFORNIA AIR TOOLS 20020 Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound.
The Powerful 2.0 HP motor operates at only 1680 RPM creating less noise and less wear.
The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-20020 Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The Easy Start Valve feature allows for an easier start up using fewer starting amps. The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for an easier start up in cold temperatures.
The large 20 Gallon Steel Air Tank is designed to store more air for higher demand air tools such as spray guns and sanders.
Prefect for the shop or garage.
The 2 (no flat) wheels and handle makes moving this air compressor very easy.
Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
Commercial Use
Non-ASME Air Tank
Pressure Switch
Thermal Overload Protector
Less heat which dissipates more efficiently
Oil-Free Pump
Cleaner air for better tool operation.
Less maintenance and Costs.
Two
pressure control gauges
Two
1/4" Industrial Female Quick Connectors
Two
Air Filters
Easy Start Valve
For Less Starting Amperage
Specifications
Sound (Ultra-Quiet): 70 decibels
Maximum Pressure:125 PSI
Voltz: 110v
Hertz: 60hz
Low Amp Draw: 14 Amps
Dedicated Outlet: 15-amp outlet
Gauge: 14-gauge
Cord Length: 25ft cord
Time to fill tank from empty to full: 4.00 Minutes
Recovery time from 95 PSI to 125 PSI: 1.00 Minute
Duty Cycle: 70/30
Maximum Run Time:30-60 min. (Depending PSI & CFM)
Tank Size: 20 Gal.
Tank Material: Steel
Dimensions:L (20") x W/D (20") x H (45")
Weight: 114 lbs.
Horsepower:2.0 HP (Rated/Running)
Air Flow Per Minute:6.40 CFM @ 40 PSI
Air Flow Per Minute: 5.30 CFM @ 90 PSI
