Features for the

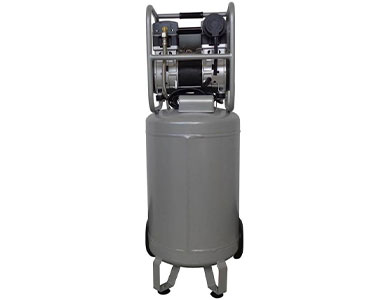

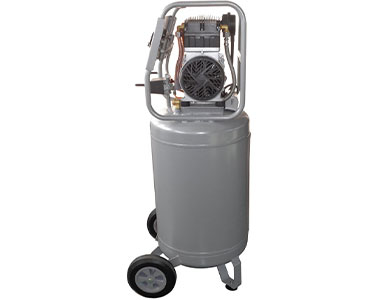

California Air Tools 20015HP Air Compressor
The CALIFORNIA AIR TOOLS 20015HP Ultra Quiet, Oil-Free and High Pressure Two-Stage Air Compressor is designed to be one of the quietest 1.5 Hp air compressors in the industry having only 70 decibels of sound.
This high pressure 1.5 HP motor operates at only 1750 RPM creating less noise and less wear.
This motor has been designed to increase duty cycle and allow for longer continuous run times.
The Oil-Free Two-Stage Dual Piston Pump System is engineered for high performance and durability.
The CAT-20015HP Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The large 20 Gallon Steel Air Tank with wheel kit makes it very easy to move around the jobsite, shop, or garage.
Designed for the person looking for High Pressure, High Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
Two pressure control gauges
Condor Pressure Switch
Thermal Overload Protector
Less heat which dissipates more efficiently
Two stage pumps
Commercial Use
Air Filter
Wheel Kit
Easy to move around.
Oil-Free Pump
Cleaner air for better tool operation.
Less maintenance and Costs.
Two
Industrial 1/4″ female quick connectors
Easy Start Valve
For Less Starting Amperage
Specifications
Sound (Ultra Quiet): 70 decibels
Maximum Pressure: 175 PSI
Volts: 110v
Hertz: 60hz
Low Amp Draw: 12 Amps
Time to fill tank from empty to full: 450 Seconds
Recovery time from 145 PSI to 175 PSI: 120 Seconds
Duty Cycle: 70/30
Maximum Run Time: 30-60 min. (Depending PSI & CFM)
Tank Size: 20 Gal.
Tank Material: Steel
Dimensions: L (19.3") x W/D (19.5") x H (46.7")
Weight: 113 lbs..
Horsepower:2.0 HP (Rated/Running)
Air Flow Per Minute:6.40 CFM @ 40 PSI
Air Flow Per Minute: 5.30 CFM @ 90 PSI
