Features for the

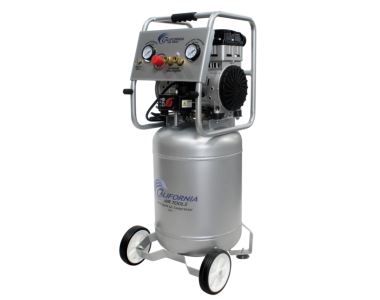

California Air Tools 10020C Air Compressor
The CALIFORNIA AIR TOOLS 10020C Ultra Quiet & Oil-Free Air Compressor is designed to be one of the quietest 2.0 Hp air compressors in the industry having only 70 decibels of sound.
The Powerful "New" 2.0 HP (SP-9421) motor operates at only 1680 RPM creating less noise and less wear.
The "New" SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.
The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
The CAT-10020C Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 500 hours or less.
The Oil-Free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).
The Easy Start Valve feature allows for an easier start up using fewer starting amps.
The Easy Start Valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely.
This no-load start up requires less amps for an easier start up in cold temperatures.
The large 10 Gallon Steel Air Tank with wheel kit makes it very easy to move around the jobsite, shop, or garage.
Designed for the person looking for Power, Air Flow, Less Service and Maintenance with at Least 30% Less Noise!
Specifications
AIR COMPRESSOR
Model: 10020C
Output @ 40 PSI: 6.40 CFM
Output @ 90 PSI: 5.30 CFM
Maximum Pressure: 120 PSI
Time to Fill Tank: 175 Seconds
MOTOR
Motor Type: Electric
Amps: 14 Amps
Motor Speed: 1680 RPM
Voltage: 110V
Hertz: 60HZ
DIMENSIONS
Length
Compressor: 16.0 in / 406 mm
Box: 18.3 in / 465 mm
Width
Compressor: 15.1 in / 384 mm
Box: 16.9 in / 430 mm
Height
Compressor: 35.4 in / 900 mm
Box: 36.8 in / 935 mm
Weight Compressor: 82.5 lbs. / 37.4 kg
Weight with box: 94.0 lbs. / 42.6 kg
