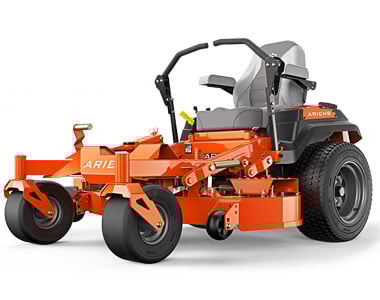

Ariens APEX 48 inch 23 HP (Kohler) Zero Turn Mower

Model: APEX 48  |  Item Number: 991161
UPC: 751058042992
There are no reviews at this time
Reg. Price: $6,713.00 $5,899.00


Features for the Ariens APEX 48

Top-Tier Zero Turn for Prosumer & Large Acreage cutters

The Ariens APEX series provides commercial performance so that you can cut your mowing time in half and allow your lawn maintain a professional look. The APEX 48 features a 48'' deck and a Kohler 7000 series engine to give you a machine that has the size, power and durability of commercial equipment. Increased protection at heavy wear points works to extend the life of the Apex. Ride in style with the Apex's modern and sleek appearance.

Extra features provide increased comfort and efficiency to make mowing even easier and more relaxing. Your neighbors don't stand a chance in competition.

  • Kohler 7000 Series Engine: Maximum cutting power is available with the Kohler 7000 Series engine that allows you to breeze through your lawn quickly.
  • Constant Belt Tension System (CBT):Provides constant belt tension. Reduces wear and heat while increasing overall belt life and requires minimal adjustment.
  • 10-Gauge Welded Deck:A 5 1/2 inch deep design with a reinforced leading edge provides sufficient airflow for tough mowing conditions.
  • Industry Leading Frame Design:Tubular frame rail provides excellent support to the machine.
  • Aluminum Spindles:Reduced bearing temperature provides cooler operation. Spindles are maintenance-free.
  • Flip-Up Discharge Chute:Reduces damage to the surrounding environment.
  • Foot-Operated Deck Lift System:Effortlessly adjust between 15 different cutting positions in 1/4'' increments with vertical pin selection.
  • Large Tires:Provide better traction and a smoother ride overall.
  • High Back Seat:Padded arm rests and a high back provide greater comfort and help to reduce fatigue during long mowing sessions.
  • Removable Rear Wrap:Easily remove the rear wrap in minutes to access engine maintenance items.
  • Roll Over Protection System (ROPS) Compatible:Supports a ROPS option to provide additional protection to the operator.

This product may contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. For more information, go to

Technical Specs for the Ariens APEX 48*

Engine Specification
Engine Brand Kohler 7000 Series
Power 23 HP
Displacement(cc) 725 cc
Fuel Capacity 5 gallons (18.9 liters)

Starting System Electric Starter

Drive System
Drive Type Hydro-Gear ZT3100 Transaxles
Speed 8 mph forward/4 mph reverse

Cutting Deck
Cutting Deck Material 10ga Steel
Spindles 3 Aluminum Spindles
1'' Dia. Steel
Ball Bearing Spindle Bearings
Deck Lift System Foot Operated
Cutting Width 48''
Cutting Height (min-max) 1.5''-5''

Seat Back Height High Back w/ seat springs, lever adjust, arm rests
Hour Meter Standard

Weight (lbs.) 823 lbs.
Length (in.) 71.5''
Width (in.) 50'' (w/o chute)
Height (in.) 42''

Residential Warranty Unit: 3 year limited consumer/1 year commercial
Deck Shell & Frame: 5 year limited deck shell & frame

* These Technical Specs are provided by the manufacturer at the beginning of the model year. Please be aware that the manufacturer may decide to change these specs at any given time without notice.

Reviews for the APEX 48

Review Rating: Sort By:


Q & A for the Ariens APEX 48

Ask us about the Ariens APEX 48 inch 23 HP (Kohler) Zero Turn Mower . Please no repair questions. Your Q&A may be posted to to help other shoppers, like you, with their purchasing decisions. Thank you.

Add Options for this Equipment for a one time discount now!

Options for the Ariens APEX 48

Add options now for your Ariens APEX 48 at a 1 time discounted price. When you are ready to check out, just click the ADD TO CART button.

Check any option you want, and it will automatically update your total below. If there are options that you do not want, just uncheck the box next to it. You will then see your new total.

Equipment: $5,899.00
Options: $0.00
Total: $5,899.00

Ariens Mulch Kit
KIT 48 MULCH Part Number: 79105700

Description: Includes blades, baffles, and installation hardware.

Reg Price: $269.95
You Save: 5%
Add This Option
Ariens Mount Kit
Mount Kit Part Number: 79106300

Description: Mount Kit

Reg Price: $199.95
You Save: 5%
Add This Option
