Ariens Ikon X-52 - Kohler MowersAtJacks.Com

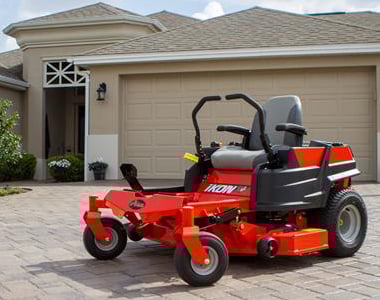

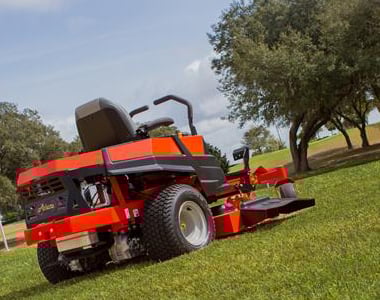

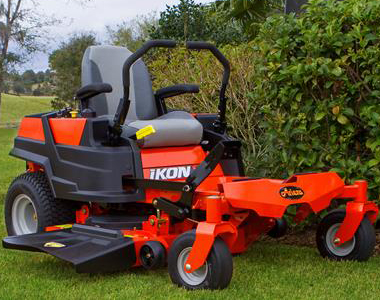

Ariens Ikon X-52 52 inch 24 HP (Kohler) Zero Turn Mower

Model: Ikon X-52 - Kohler | Item Number: 915222
UPC: 751058042763

- 5.00 Stars - Based on 7 Review(s)

Reg. Price: Sold Out Sold Out

Sold Out!

Features Technical Specs Reviews Q & A

Features for the Ariens Ikon X-52 - Kohler

Cover even more ground than Arien's 42 inch zero turns with this Ariens Ikon X-52 inch Zero Turn Mower. This mower offers optimal cutting performance and has a 300 lbs. towing capacity for help with yard work beyond just mowing. A 52 inch mower deck allows you to cover ground quickly and has 13 different cutting positions to deliver a perfect cut every time. The Hydro-Gear transmission allows you to drive this mower like a car with a non-shifting transmission to reach speeds of up to 7 mph to breeze through your lawn quickly. And, maximum operator comfort is enhanced with features such as the high back plush seat and arm rests for all day comfort.

Kohler 7000 Series Engine: Maximum cutting power is available with the Kohler 7000 Series engine that allows you to reach up to 24 HP and 725cc to breeze through your lawn quickly.
Hydro-Gear Transmission: This Hydrostatic Hydro-Gear transmission eliminates shifting while reaching forward speeds of up to 7 mph.
52 inch Fabricated Cutting Deck: Cover lots of ground with the 52 inch fabricated cutting deck that has 4 support positions to prevent excessive deck movement for sturdy mowing. Fabricated decks also maximize air flow under the deck for an exceptional cut every time. Choose between 13 different cutting positions ranging from 1.5-4.5 inches for a perfect cut every time.
Operator Comfort: Mow all day while taking the work out of the chore with the plush high back seat, arm rests, cup holder, and fuel sight gauge.
Adjustable Control Arms: For more comfort the operator can adjust the control arms in three different directions. Also flip the levers out for easier entry and exit.
Towing Capacity: Enhance the use of your mower with a 300 lb. towing capacity. Use this tractor for other yard work than just mowing. Hitch sold separately.
Warranty: Feel assured with the 3 year residential warranty, and 90 day commercial warranty.

Operator's Manual: Ariens Ikon X-52 Operator's Manual

Parts Lookup: Ariens Ikon X-52 Parts Diagram

WARNING:
This product may contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Technical Specs for the Ariens Ikon X-52 - Kohler*

Features
Towing Capability	300 lbs max towing capacity (hitch sold separately)
Engine
Engine Brand	Kohler
Displacement(cc)	725cc
Power	24 HP
Starting System	Electric
Fuel Capacity	2.8 gallons
Engine	4-cycle
Drive System
Drive Type	Hydrostatic
Transmission Manufacturer	EZT Transaxles
Speed Forward (min, max)	0-7 mph
Speed Reverse (min, max)	0-3 mph
Wheel Height (front/rear)	11 X 4 inches, 18 X 8.5 inches
Cutting Deck
Cutting Deck Material	10-gauge
Cutting Width	52 inches
Cutting Deck Type	Fabricated
Cutting Methods	bag/mulch/discharge
Cutting Height Steps	13
Blades	3
Blade Engagement	Warner electric
Deck Lift System	Manual, foot operated
Cutting Height (min-max)	1.5-4.5 inches
Features
Arm Rests	yes
Seat Back Height	high
Hour Meter	yes
Dimensions
Length (in.)	77.5 inches
Width (in.)	56 inches (deflector up) 63.5 inches (deflector down)
Height (in.)	41 inches
Weight (lbs.)	615 lbs.
Warranty
Residential Warranty	3 years
Commercial Warranty	90 days
Engine	Residential- 3 years Commercial - 90 days

* These Technical Specs are provided by the manufacturer at the beginning of the model year. Please be aware that the manufacturer may decide to change these specs at any given time without notice.

Reviews for the Ikon X-52 - Kohler

Review Rating: Sort By:

by George A C
Reviewed on 4/22/2019 - Purchased on 3/11/2019

Review:

The mower has performed as expected, which is to say that it works very well. All of my experiences with Jack's has been positive. I would rank their customer service among the top of all vendors that I work with or have worked with. The mower arrived in perfect condition and ready to mow. I had one [small] follow-up service item, and it was immediately addressed and to my satisfaction.

by Timothy R
Reviewed on 4/11/2019 - Purchased on 6/8/2018

Review:

It's a great mower and it really handles well. I have had mine a full season and always wait to leave a review until I put some significant hours on the motor. The only drawback to this mower is that the chute, which already needs to be replaced after one season. However, that is to be expected, because everything is hardened rubber these days. Maintenance is easy, spark plugs are easily accessible, oil and oil filter are the hardest, but YouTube has a great Ariens maintenance videos to help out with that. Oh, lastly regarding maintenance, you will need an impact driver to get those blades off and always a good idea, because apply torque by hand while the mower is jacked up is not a good idea. Regarding the engine, I thought about getting the more expensive Kawasaki, but I have been really happy with the Kohler engine and it runs like a clock.

by William L
Reviewed on 9/3/2018 - Purchased on 8/1/2018

Review:

You have made this purchase very easy. I enjoyed doing business with you.

by todd w
Reviewed on 8/15/2018 - Purchased on 7/15/2018

Review:

I've been dealing with Jack for years now and the service has been very good

by Girl Scout Council of T
Reviewed on 7/10/2018 - Purchased on 6/8/2018

Review:

No Comments

by gerald r
Reviewed on 11/2/2017 - Purchased on 10/2/2017

Review:

My Ariens IKON X-52 arrived on schedule, totally assembled, and functioned flawlessly.

by Nadia M
Reviewed on 6/26/2015 - Purchased on 5/24/2015

Review:

Everything I thought it would be...well-built, high-performing, and durable. I couldn't be happier with this mower!

Q & A for the Ariens Ikon X-52 - Kohler

Ask us about the Ariens Ikon X-52 52 inch 24 HP (Kohler) Zero Turn Mower. Please no repair questions. Your Q&A may be posted to MowersAtJacks.com to help other shoppers, like you, with their purchasing decisions. Thank you.

Asked on 10/13/2017 12:49:41 PM by Chris

Question:

for trailer purposes, With the discharge shoot in the upright postion, What is the widest measurement of the Ikon X 52" mower?

Answer:

Chris, the width of the Ariens Ikon X-52 with chute up is 56 inches.

Asked on 9/30/2017 11:32:20 AM by Glynn

Question:

The features indicate the mower can pull 300 lbs. Does it have a hitch to allow that towing or does that have to be purchased separately?

Answer:

Glynn, the receiver hitch is included.

Asked on 9/4/2017 9:49:04 PM by Sterling

Question:

The Technical Specs mention the mower mulches --- is that standard or does it take a special kit to make it mulch

Answer:

Sterling, a mulch kit (71514000) must be purchased separately for best mulching capability.

Asked on 9/1/2017 2:50:04 PM by JOE

Question:

WHAT ARE THE FRONT AND REAR TIRE SIZES ON THIS MOWER?

Answer:

Joe, the front wheels are 11" x 4" and the rear wheels are 18" x 8.5"
